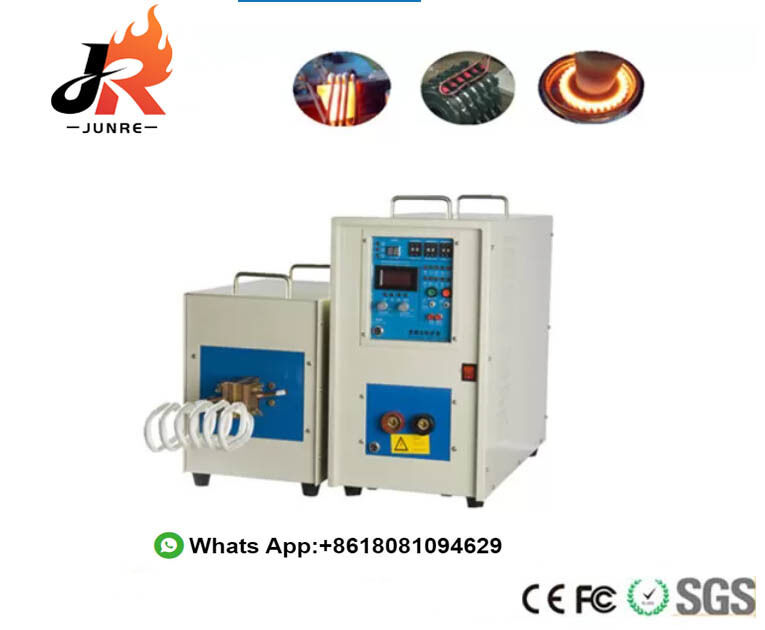

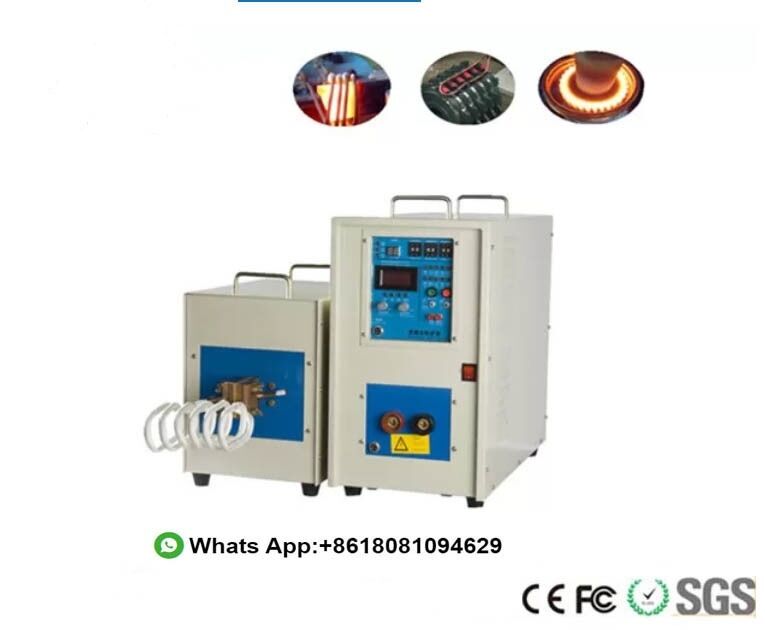

25KVA Induction Hardening Machines IGBT Medium Frequency Induction Heating Machine

Brand Name:	JR
Model Number:	JR-40AB
MOQ:	1 set
Price:	negotiation
Delivery Time:	7~15days
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

china

Certification:

CE, SGS , ROHS

Core Components:

IGBT, ELECTRONIC BOARDS

Machinery Test Report:

Provided

Video Outgoing-inspection:

Provided

Application:

Heating, Forging, Melting, Hardening And Etc

After-sales Service Provided:

Engineers Available To Service Machinery Overseas

System:

IGBT Control

Packaging Details:

wooden box

Supply Ability:

500set/month

Highlight:

25KVA Portable Induction Heating Machine

High-Efficiency Induction Heating Equipment

24-Hour Continuous Operation Induction Heater

Product Description

25KVA High-Efficiency Medium Frequency Portable Induction Heating Machine

Product Description

Frequency conversion electromagnetic induction heating (or induction heating) is a method for heating metal materials by converting power frequency power supply into a specific range based on the principle of electromagnetic induction. This technique is primarily applicable to metal hot working, heat treatment, welding, and melting. It is also used in packaging (such as sealing aluminum foil in medicine and food industries) and semiconductor material processing (such as extruded monocrystalline silicon and heating affixed metal parts for auto glass).

Key Features

Advanced MOS and IGBT frequency conversion control technologies ensure high efficiency and maximum output power.
Constant current and power control function optimizes metal heating processes for efficient, rapid heating.
Three-stage time setting (heating, heat preservation, cooling) with independent power regulation for each stage.
Ten types of fault protection including over-current, over-voltage, water shortage, and phase missing detection.
Safe operation without requiring high-voltage equipment.
Full load design allows for 24-hour continuous operation.
Ultraviolet temperature detection enables automatic temperature control and simplifies manual operation.

Technical Parameters

Material	Aluminum
Work Power	340V-430V
Maximum Input Current	42A
Output Power	25KW
Fluctuating Frequency	1-20KHz
Output Current	200-1800A
Cooling Water Flow Rate	0.08-0.16Mpa 9L/Min
Water Temperature Protection Point	50°C
Product Size (Main Unit)	620280550mm
Product Size (Transformer)	560295470mm
Net Weight (Main Unit)	37.5kg
Net Weight (Transformer)	42.5kg

Induction Heating Work Principle
