Created with Pixso. 25KW-250KW Induction Forging Machine IGBT Control For Brass Copper Steel

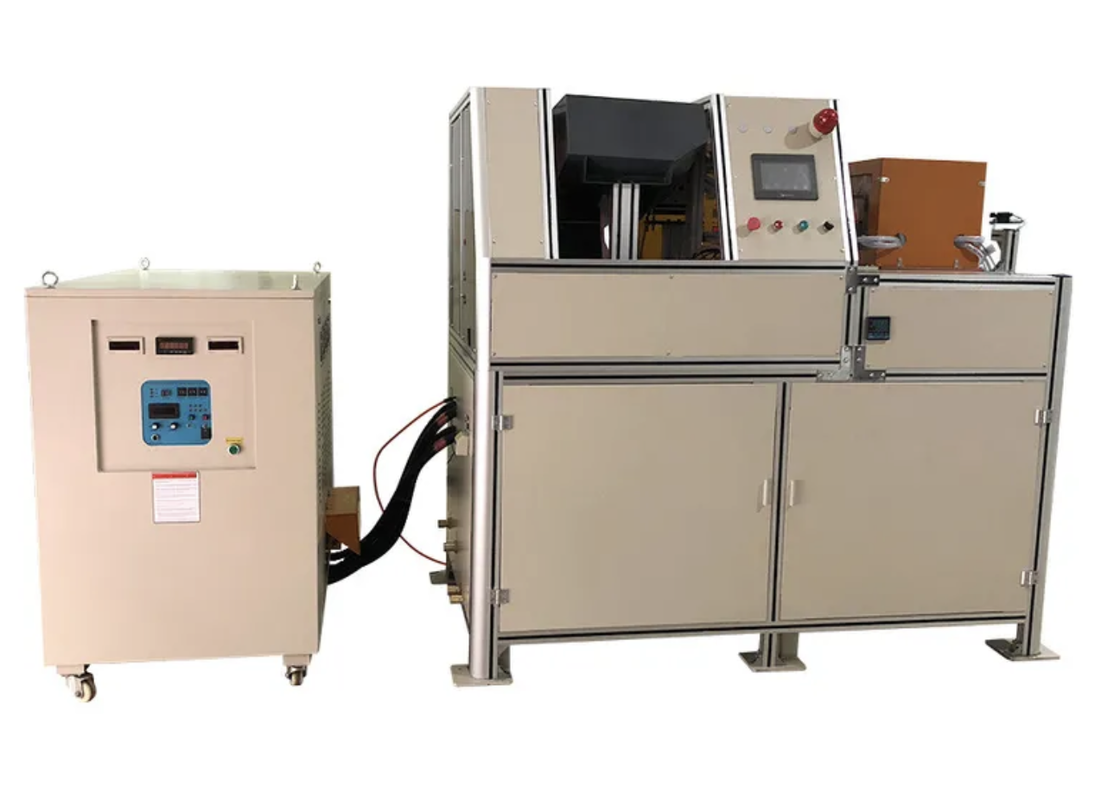

25KW-250KW Induction Forging Machine IGBT Control For Brass Copper Steel

Brand Name: InductionFusion
Model Number: IF-80KW Flexible Series
MOQ: 1 set
Price: Customize + Negotiation
Delivery Time: 10-20working days
Payment Terms: T/T,Western Union
Detail Information
Place of Origin:
china
Certification:
CE, SGS , ROHS
Customized:
Customized
Auto Feeder::
Pulling Feeder Machine
Control System::
IGBT Control
Machinery Test Report:
Provided
Heating Principle:
Induced Magnetic Field To Heating
Packaging Details::
Plywooden Box
Packaging Details:
wooden box
Supply Ability:
100/SET Per Month
Highlight:

IGBT Control Induction Forging Machine

,

25KW-250KW Induction Heater

,

Brass Copper Steel Forging Pulling Feeder

Product Description
Auto Induction Forging Machine Pulling Feeder
Advanced automatic induction forging system designed for brass, copper, and steel forging applications. This comprehensive solution includes medium frequency induction heating with integrated pulling feeder technology for efficient metal forming operations.
Induction Heater for Forging Applications
Forging transforms workpieces at specific temperatures (varying by material) into desired shapes using forging presses, punch presses, or other equipment. Applications include hot extrusion of watch cases, watch flanges, handles, molds, accessories, kitchen and tableware, art ware, standard parts, fasteners, fabricated mechanical parts, bronze locks, rivets, steel pins, and similar components.
Complete Equipment System
The system comprises a medium frequency induction heating machine, worktable, induction coil, feeding machine, infrared temperature detector, and additional supporting components.
Key Features
  • Wide frequency range: 1KHZ-20KHZ, selectable based on workpiece diameter requirements
  • Flexible coil design: 500mm-1m length for single-piece heating; optimized for multiple-piece processing with superior penetration results
  • Continuous heating method with uniform coil load distribution
  • Maintains above 95% efficiency during heating from room temperature to 1100℃
  • Optimized for non-ferrous metals: Achieves over 85% efficiency for bronze and aluminum with proper coil and capacitance design
  • Compact design compared to silicon-controlled frequency machines
  • Easy maintenance and 15-20% power savings
Technical Specifications
Model Max Output Power Heating Capability
IF-25 Forging Furnace 25KW Recommended for OD15-30mm steel bar heating
IF-40 Forging Furnace 40KW
IF-60 Forging Furnace 60KW Recommended for OD15-50mm steel bar heating
IF-100 Forging Furnace 100KW
IF-160 Forging Furnace 160KW Recommended for OD15-80mm steel bar heating
IF-200 Forging Furnace 200KW
IF-250 Forging Furnace 250KW Recommended for larger than OD80mm steel bar heating
25KW-250KW Induction Forging Machine IGBT Control For Brass Copper Steel 0 25KW-250KW Induction Forging Machine IGBT Control For Brass Copper Steel 1 25KW-250KW Induction Forging Machine IGBT Control For Brass Copper Steel 2
