Induction Heating Equipment
Created with Pixso. 20KG-400KG Medium Frequency Induction Heating Machine For Aluminum Bronze

20KG-400KG Medium Frequency Induction Heating Machine For Aluminum Bronze

Brand Name: JR
Model Number: JR-42
MOQ: 1 set
Price: negotiation
Delivery Time: 7~15days
Payment Terms: T/T,Western Union
Detail Information
Place of Origin:
china
Certification:
CE, SGS , ROHS
Net Weight:
20KG
Work Power:
180V-250V
Out Power:
25KW
Smelting Weight Of Steel, Iron::
8kg
Packaging Details:
wooden box
Supply Ability:
500set/month
Highlight:

400kg medium frequency induction heating machine

,

20kg medium frequency induction heating machine

,

20kg medium frequency induction heating equipment

Product Description



Energy Saving Medium Frequency Induction Melting Furnace for Copper with For Smelting Aluminum / Bronze



Product Features

1. IGBT induction heating power supply,15% -30% energy saving than traditional thyristor power supply! themedium- frequency magnetic has a stirring effect on the metal liquid, conducive to the uniformity of the ingredients and the floating of the metal slag. This equipment completely solves the drawbacks of the original melting process such as coke furnace and gas furnace.
2. A lot of models can be selected to melt different amount of metals. Not only is it suitable for the factory, but also suitable for the college researching companies to use.
3. The crucible replacement is very easy for different metal material.
4. Modular design, ease of maintenance, no need to repair any special foundations, requires low operation cost,
5. easily operable, produces no pollution and noise.

Specification

Specification

Smelting weight of steel and iron

Smelting weight of alumium, bronze, and other precious metals

    JR-25KW

      8KG

       20KG

    JR-40KW

      20KG

       40KG

   JR-60KW

                      30KG

       60KG

   JR-100KW

      50KG

       100KG

   JR-160KW

      100KG

       200KG

  JR-200KW

      150KG

       300KG

  JR-250KW

      200KG

       400KG




The furnace body is made bythick aluminum alloy shell toreduce the magnetic leakage, small size, light weight, movable, covering less than 1 square meter,can work continuously for 24hours, environmental protection and energy saving.

The main control board is microcomputer control, one -key zero - pressure start.The power supply adopts IGBT imported power device, which is more integrated and miniaturized.Easy to install and operate,effective output power isover 90%

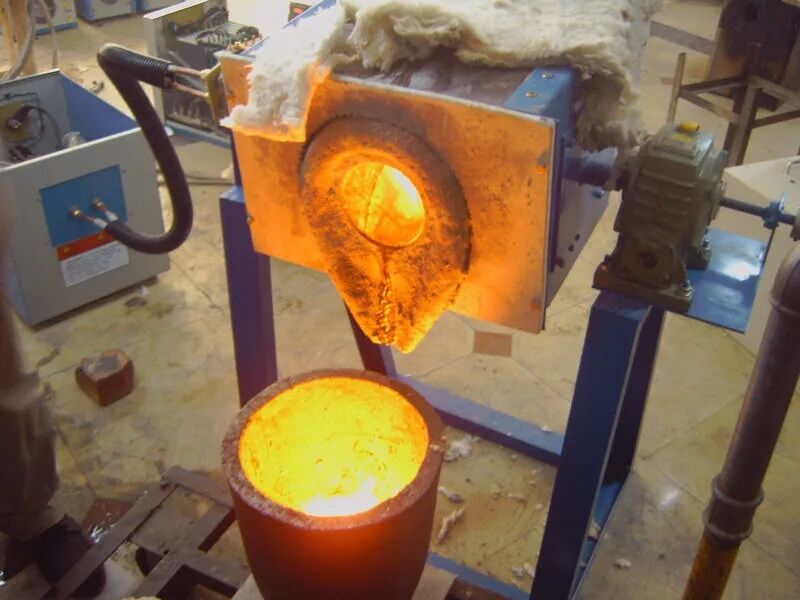

The image below shows:

20KG-400KG Medium Frequency Induction Heating Machine For Aluminum Bronze 0


20KG-400KG Medium Frequency Induction Heating Machine For Aluminum Bronze 1
