| Brand Name: | JR |
| Model Number: | JR-42 |
| MOQ: | 1 set |
| Price: | negotiation |
| Delivery Time: | 7~15days |
| Payment Terms: | T/T,Western Union |
Quick Detail:
|
Name |

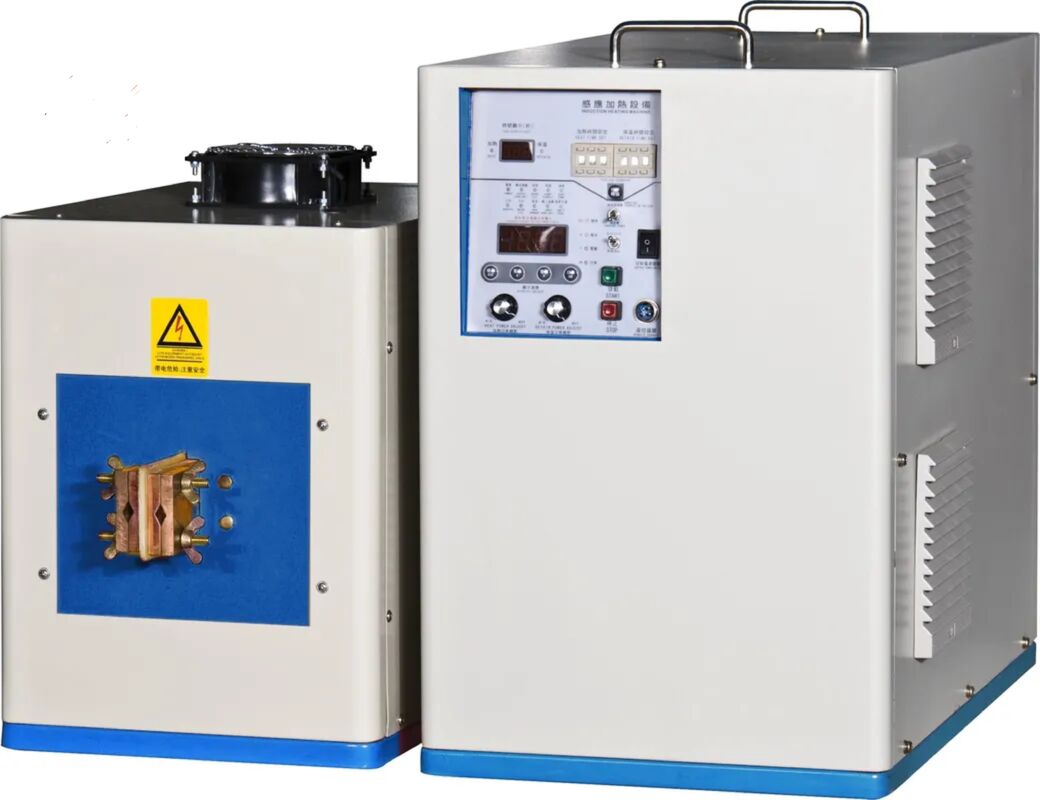

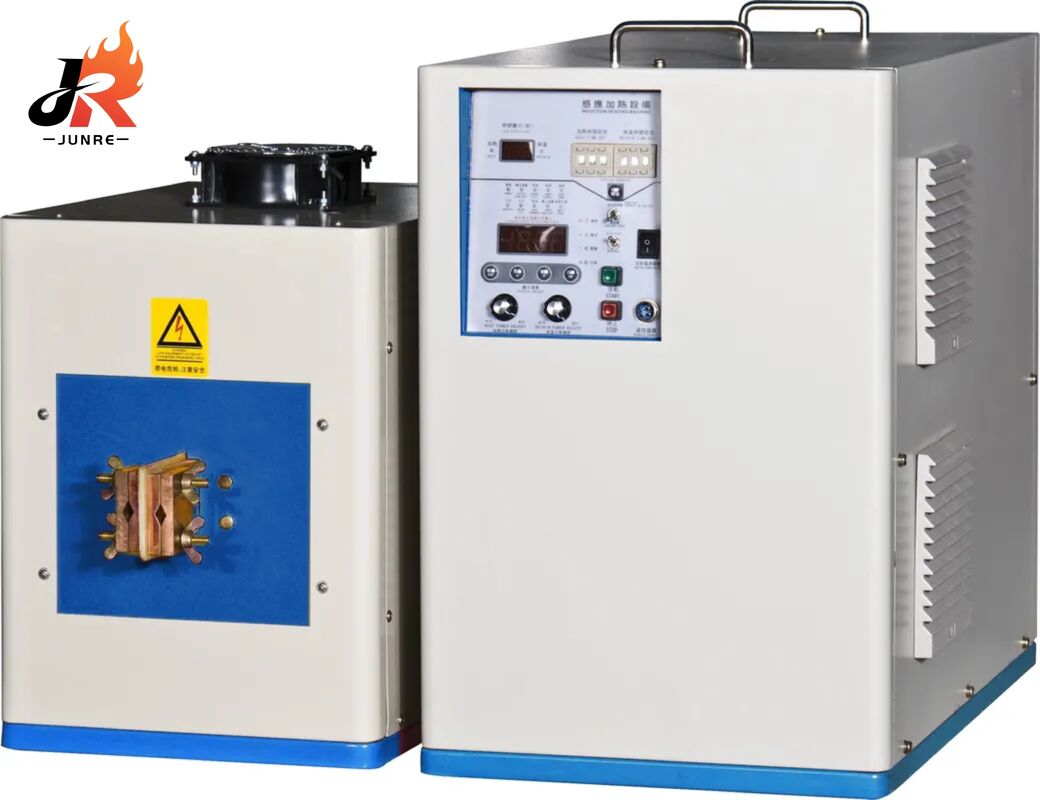

SGS Approved Ultrahigh Frequency Induction Heating Equipment For Smelting |
Application |
Hot forging, hot fitting, smelting, surface quench, welding, annealing |
|
Work power |
360V-520V |
Out power |
60KW |
|
Product size |
main: 640*350*550mm transformer: 510*300*450mm |
Certificate |
CE , SGS , ROHS |
|
Model |
JR-60AB (Three phase) |
|
Work power |
360V-520V |
|
Maximum input current |
90A |
|
Output power |
60KW |
|
Fluctuating frequency |
50-150KHZ |
|
The flow rate of cooling water |
0.2Mpa, 6L/min |
|
Water temperature protection point |
50C |
|
Product size |
main: 640×350×550 mm transformer:510*300*450mm |
|
Net weight |
main: 50kgs transformer: 28kgs |
Smelting Suitable for steel, stainless steel, iron, copper, brass, gold, silver, aluminum, aluminum alloy and other non-ferrous metals
and precious metals heating smelting.
Annealing Suitable for weld annealing after welding pipe, wire, pipe, sheet bright annealing stainless steel ware after tensile
annealing.
