60kW Induction Melting Furnace 1–10kHz Induction Metal Melting Furnace

Brand Name:	JR
Model Number:	JRMQ-TC-60KW (Three phase)
MOQ:	1 set
Price:	negotiation
Delivery Time:	7~15days
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

china

Certification:

CE, SGS , ROHS

Video Outgoing-inspection:

Provided

Usage:

Melting Furnace

Certificate:

CE , SGS , ROHS

Machinery Test Report:

Provided

Type:

Induction Furnace

Voltage:

380V

Packaging Details:

wooden box

Supply Ability:

500set/month

Highlight:

60kW Induction Melting Furnace

60kW Induction Metal Melting Furnace

10kHz Induction Metal Melting Furnace

Product Description

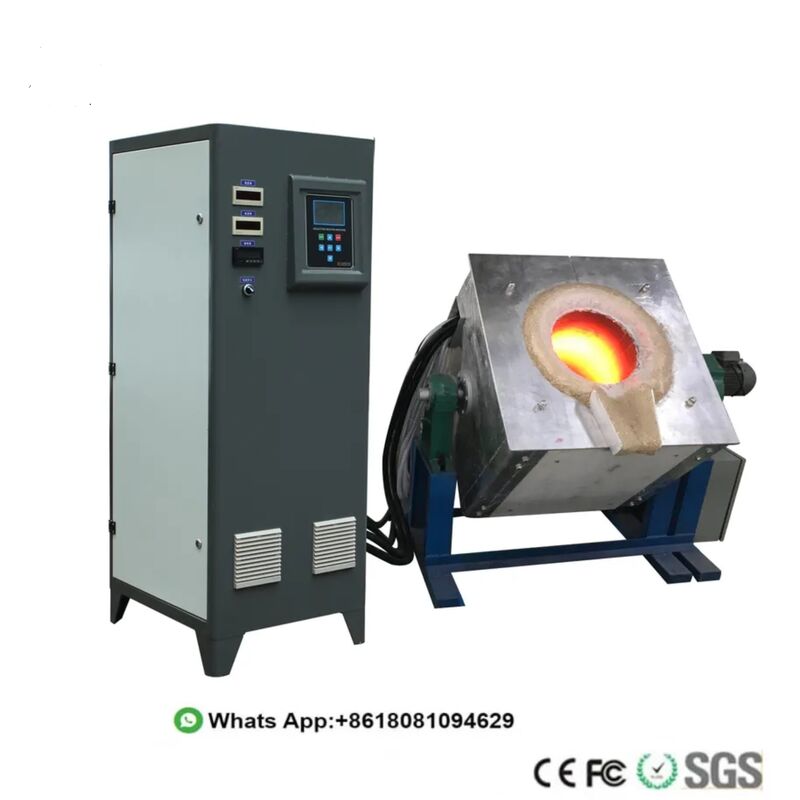

60kW Induction Melting Furnace with Touch Screen Control (1–10 kHz) for Metal Melting

Technical Parameter :

Model	JR-TC-60KW (Three phase)
Work power	340V-430V
Maximum input current	90A
Output power	60KW
Fluctuating frequency	1-10KHZ
Output current	400-4500A
The flow rate of cooling water	0.08-0.16Mpa 12L/Min
Water temperature protection point	50C
Product size	8085301260MM
Net weight	102kg

IGBT Induction melting furnace selling point:

· Use Siemens IGBT power supply device. · Fast heating. The fastest heating is less than 1 second, and the heating speed can be adjusted and controlled. · It has a good electromagnetic stirring effect, which is conducive to the uniformity of molten metal temperature and structure, and reduces scum and impurities. · The frequency range can be from 1KHz to 30KHz, and the induction coil and matching capacitor box can be designed according to the specific requirements of the melting volume. · High thermal efficiency and low operating noise. · Energy saving and environmental protection. With a thermal efficiency of over 95%, it is an ideal substitute for thyristors, coal gas, acetylene, coke, and electric furnaces. · The furnace temperature can reach 1000-1600 degrees. · This machine is easy to install and operate. It has been professionally debugged before leaving the factory, so there is no need to debug it again.

IGBT induction melting machines are mainly used for the melting of steel, stainless steel, iron, copper, brass, bronze, silver gold, platinum, zinc, aluminum and alloy materials, etc.

Melting capacity can be from 3kg to 500kg.
