| Brand Name: | JR |
| Model Number: | JR-TC-60KW |
| MOQ: | 1 set |
| Price: | negotiation |
| Delivery Time: | 7~15days |
| Payment Terms: | T/T,Western Union |

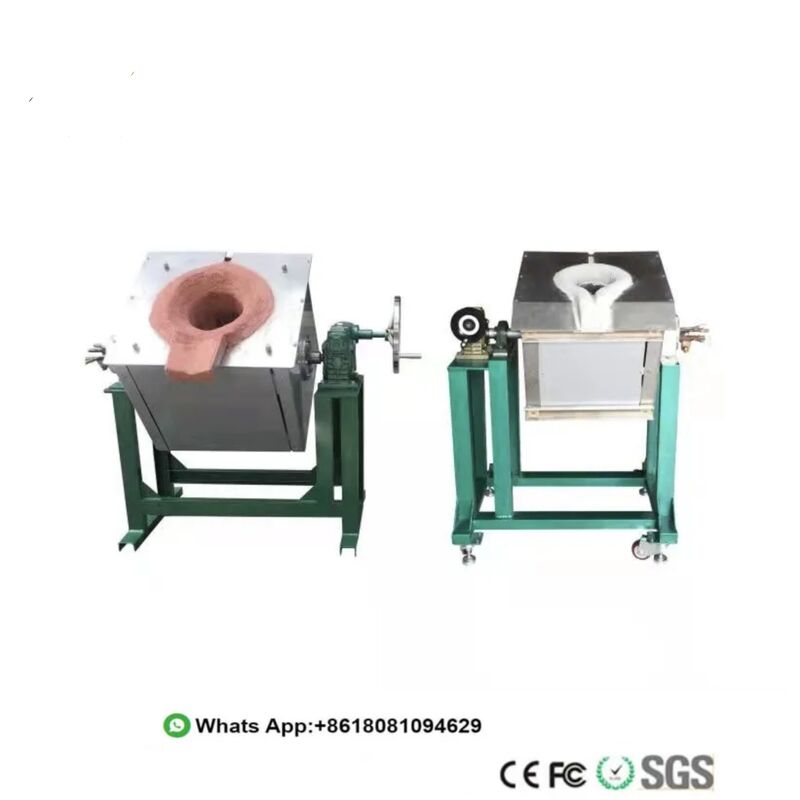

The 60kW Induction Melting Furnace is designed for fast, efficient, and stable metal melting in industrial applications. Powered by a stable medium-frequency induction system, it delivers rapid heating performance while maintaining consistent temperature control, helping reduce melting time and energy consumption.
Equipped with an intuitive touch screen control panel, the furnace allows operators to easily monitor and adjust key parameters in real time. This user-friendly interface minimizes training time, improves operational accuracy, and ensures safer, more reliable melting processes.
Built for durability and continuous operation, this induction melting furnace is ideal for melting copper, aluminum, steel, and other metals in foundries, metal processing plants, and industrial workshops. Its compact design, high efficiency, and stable performance make it a cost-effective solution for manufacturers seeking productivity and long-term reliability.
Technical Specifications
| Product Name | Induction Melting Furnace |
| Rated Power | 60KW |
| Heating Method | Medium Frequency Induction Heating |
| Melting Capacity | Depends on metal t |
| Applicable Metals | Copper, Aluminum, Steel, Iron, Brass |
| Cooling System | Water Cooling |
| Water temperature protection point | 50C |
| Temperature Control | Digital Control |
Equipment principle type: Series resonance for voltage type
Features of equipment :
In the early induction heating equipment, the high-frequency inverter device required by the inverter unit determines the form of the device. It has experienced the development process from electron tubes and thyristors to the current widespread use of IGBT . In the current mainstream IGBT-type induction heating products, there are still many differences in circuits and structures. From the rectifier unit, there are controllable rectification and uncontrollable rectification; from the inverter unit, there are pulse-width modulation inverter and chopper voltage regulation inverter; from the resonant output unit, there are parallel resonance and series resonance. Various circuits and structural methods have differences in performance such as efficiency, power factor, and reliability. Although great progress has been made by using IGBT to replace thyristors and electron tubes, there are still some common problems in the induction heating power supply equipment developed and produced by most manufacturers.
Products Details
