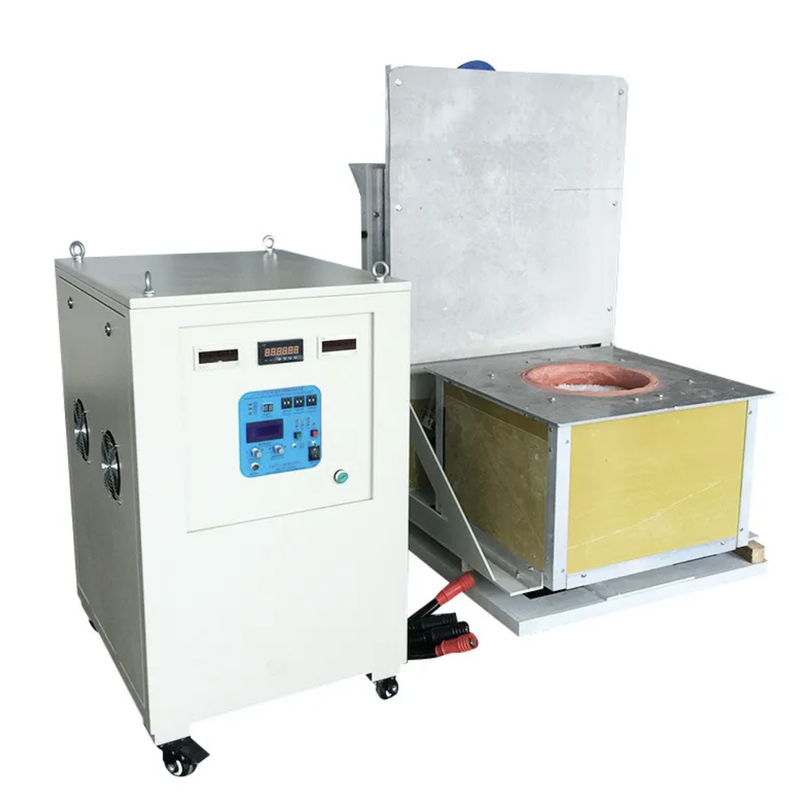

ROHS Induction Heating Machine Melting Furnace Induction Casting Machine 100KW IGBT

Brand Name:	InductionFusion
Model Number:	IF-100KW
MOQ:	1 set
Price:	negotiation
Delivery Time:	7~15days
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

china

Certification:

CE, SGS , ROHS

Input Voltage:

3-phase 380V, 50 Or 60HZ

Load Duration:

100%

Cooling Water Requirements:

≥ 0.2Mpa, ≥ 5L/min

Max Temperature:

1600℃

Core Components:

IGBT

Video Outgoing-inspection:

Provided

Packaging Details:

wooden box

Supply Ability:

500set/month

Highlight:

rohs induction heating machine

induction casting machine 100kw

rohs induction casting machine

Product Description

Induction Metal Heater Melting Furnace Casting Machine 100KW IGBT

Feature:

1. High power, low frequency, good heat permeability
2. High efficiency, low power consumption, easy to operate and install.
3.24 hours of continuous work ability.
4. All-solid-state IGBT frequency conversion and function adjustment to achieve automatic frequency conversion tracking.
5. Over-current, over-Asian, overheated, water-deficient, lack of equal automatic protection functions to ensure equipment
reliability.
6. Manually and automatically adjust to improve the heating quality of the workpiece and the repeatability and continuity of the
heating.

TECHNICAL PARAMETER :

Technical Parameter
Item No.	Input Power	Crucible Diameter	Melting Material Capacity
Item No.	Input Power	Crucible Diameter	Aluminum	Copper Brass	Stainless Steel,Iron
IF-15	15kw	O.D85*165mm	3Kg	10Kg	3Kg
IF-25	25kw	O.D118*180mm	5Kg	20Kg	5Kg
IF-35	35kw	O.D130*225mm	10Kg	30Kg	10Kg
IF-45	45kw	O.D150*300mm	18Kg	50Kg	18Kg
IF-70	70kw	O.D175*325mm	25Kg	100Kg	25Kg
IF-90	90kw	O.D195*390mm	40Kg	120Kg	40Kg
IF-110	110kw	O.D210*400mm	50Kg	150Kg	50Kg
IF-160	160kw	O.D265*465mm	100Kg	250Kg	100Kg

Some Of Raw Material View

ROHS Induction Heating Machine Melting Furnace Induction Casting Machine 100KW IGBT 0

Technological Process

ROHS Induction Heating Machine Melting Furnace Induction Casting Machine 100KW IGBT 1

Product Details

ROHS Induction Heating Machine Melting Furnace Induction Casting Machine 100KW IGBT 2

Easy installation Easy operation

ROHS Induction Heating Machine Melting Furnace Induction Casting Machine 100KW IGBT 3
