| Brand Name: | JR |
| Model Number: | JR-60AB |
| MOQ: | Single item |
| Price: | negotiation |
| Delivery Time: | 7~15days |
| Payment Terms: | T/T,Western Union |
70KVA Steel Annealing Industrial Induction Heater
Quick Detail:
|
Name |

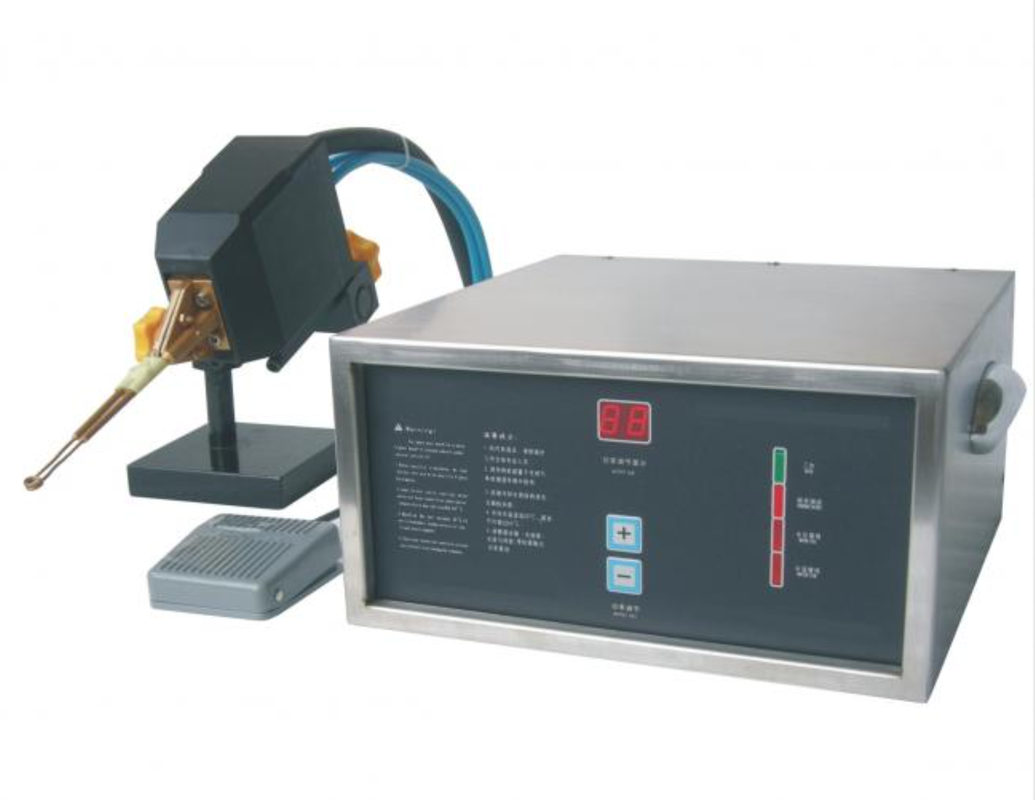

Small Size Ultrahigh Frequency Induction Heating Equipment 6KW |
Application |
Hot forging, hot fitting, smelting, surface quench, welding, annealing |
|
Work power |
180V-250V |
Out power |
6KW |
|
Product size |
main: 430*280*90mm part : 230*100*115mm |
Certificate |
CE , SGS , ROHS |
Specification
|
Model |
GYH-06AC (Single phase) |
|
Work power |
AC220V50HZ |
|
Maximum input current |
23A |
|
Output power |
6KW |
|
Min Power |
40W |
|
Fluctuating frequency |
1.5MHZ |
|
Product size |
main: 430×280×90 mm part: 230*100*115mm |
|
Net weight |
12.8kgs |
super frequency heating equipment has such features as high frequency (the minimum heated
welding diameter is φ0.1mm), small size, light weight, low failure rate and conservation of energy (it can save the power by 70% as compared with glass-ceramic vacuum tube high frequency heating equipments). Furthermore, it can ensure the solid welding point which is pleasing and delicate in appearance, integral geometric configuration, perfect surface grain, complete crystal structure of internal metal part, limited annealing range and elimination of obvious weld knot. It is widely applied to the welding of couplers and inserts used in metal glass manufacturing as well as electric appliance and electronic industries, non-contact welding of internal parts of small-size relays, high-pressure refrigerating parts, headwear decorations, metal ornamental articles and art ware
Advantages of Induction Heating Equipment
1. Fast heating: the minimum rate of heating is less than 1 second (rate of heating is available for adjustment and control).
2. Wide coverage of heating: it can be used to heat various metal parts (replace removable induction coil as per different operating switches).
3. Easy installation: it can be used once it is connected with power source, induction coil as well as water supply pipe and rising pipe; it is small in size and light in weight.
4. Easy operation: you can learn to operate it within several minutes.
5. Fast start-up: it can be started to perform heating operation on condition that water and power supply is available.
6. Low power consumption: As compared with conventional vacuum tube high frequency equipments, it can save the power by approximately 70%. The smaller the size of the work piece is, the lower power consumption would be.
7. High effectiveness: it has such features as uniform heating (it is applicable to adjust the spacing of the induction coil to ensure the appropriate temperature as required by each part of work piece), fast warming and limited oxic horizon, and can guard against any waste after annealing.
8. Comprehensive protection: it has such functions as overpressure, over-current, overheat and water shortage alarm indications as well as automatic control and protection.
9. Controllable temperature: it is applicable to control the temperature for heating work pieces as per the preset heating time, and thereby control the heating temperature at a certain technical point.
10. Comprehensive full load design: it can work continuously for 24 hours.
11. Small size and light weight: it has a weight of only several dozens of kilograms, of which, the limited floor space can effectively save the workshop space.
12. Elimination of high voltage: it requires no step-up transformer which may produce approximately ten thousand voltage, and thus can ensure the maximum safety.
