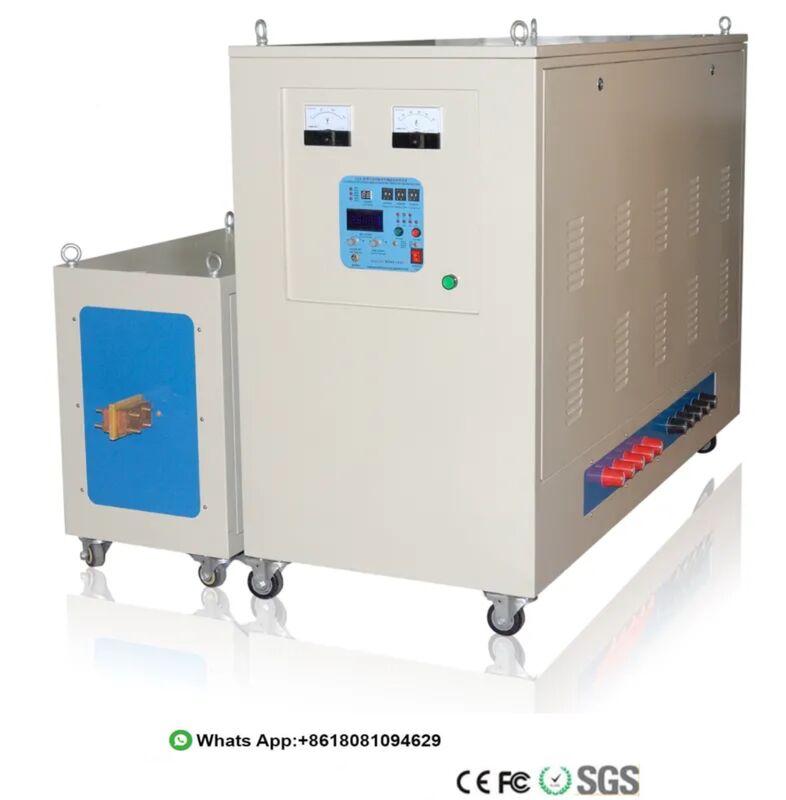

10-50khz Medium Frequency Induction Heating 100KW For Steel Tube

Brand Name:	JR
Model Number:	JR-100AB
MOQ:	1 set
Price:	negotiation
Delivery Time:	7~15days
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

china

Certification:

CE, SGS , ROHS

System Control:

IGBT

Structure:

Vertical Type

Cooling:

Water

Application:

Heating, Forging, Melting, Hardening And Etc

Type:

Ceramic Heating Equipment

Condition:

New

Packaging Details:

wooden box

Supply Ability:

500set/month

Highlight:

100KW Output Power Induction Heater

10-50khz Fluctuating Frequency Induction Heating Machine

400-4000A Output Current Medium Frequency Heater

Product Description

Medium Frequency Induction Heater Heating Machine for Steel Tube

Induction Heating Machine advantages

Energy saving
No physical contact and less maintenance.
Minimizes the time of heating. Therefore it reduce oxidation and decrease production time.
Easier cleaning processes afterwards
Reduces the heat affected area
Reduced risk causing a more pleasant work environment than conventional methods.
Possibility to automate welding processes which leads to an easier implementing and repetitive proces

Basic Info

Customized	Customized
Work power	220V-520V
Maximum input current	150A
Output power	100KW
Fluctuating frequency	10-50khz
Output current	400-4000A
The flow rate of cooling water:	0.08-0.16Mpa 10L/Min
Water temperature protection point	50C
Product size	main : 790x695x1060mm
Product size	transformer : 865x420x650mm
Net weight	main : 100kgs
Net weight	transformer : 70kgs

Delivery Time: within 7 workdays.
Shipping Term:By sea,By air,by express.

Application:

Forging(Bar,flat plate,bar end heating,pipe ends,bar end heating)
Pre-heating(Pipe,steel wire,stainless steel wire)
Brazing(Saw blades,carbide tools,cooper tube,aluminum part,drilling tools,Pan)
Annealing(Steel pipe,golf ball head,brass lock,aluminum pan)
Hardening(Gear,shaft,pipe,bearing,pump fitting,steel plate,roller)
shrink fitting(motor,pipe)
Melting(Iron,steel,brass,aluminum,silver,zinc)

Extra accessories accept choose,

1>Chiller
2>Customer design Coil
3>Infrared Thermometer
4>Back-up Electronic Boards
5>Forging Furnace,Melting Furnace,Hardening Fixture

Main characteristics

1 Siemens IGBT module and Inverting technologies of third generation been used; Higher reliability and lower maintenance cost.
2 100% Duty cycle, continuous working is allowed at maximum power output.
3Display of heating power and heating current and oscillating frequency;
4 Simple to install, Installation can be done by unprofessional person very easily;
5 Light weight
6 Advantages of the model with timer: The power and the operating time of the heating period and the retain period can be preset respectively, to realize a simple heating curve, this model is suggested to use for batch production to improve the repeatability;
7 Constant current or constant power status can be selected accordingly to achieve higher heating efficiency;
